Light. Simple. Durable.
Ultra-lightweight, durable and trouble-free mounting for commercial flat-roof, ground and carport applications — engineered to take on Canadian snow and wind.
Less weight. Fewer penetrations.

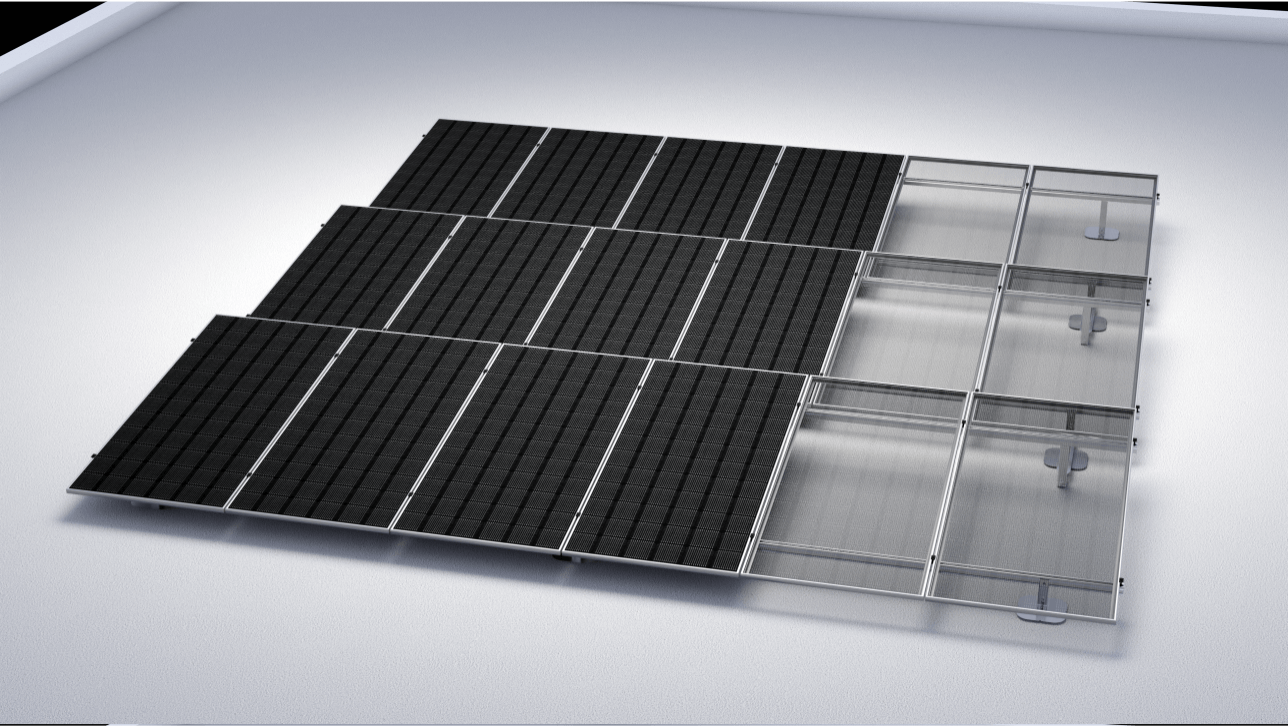

The FX is a fixed-tilt commercial system engineered for flat roofs — lightweight construction, strong wind performance and far fewer roof anchors than traditional racking.
- As low as 2.2 psf including modules, inverters, racking and attachments
- Shared intra-row mounts cut roof anchors by up to 40%
- South-tilt uses 35 anchors vs 96 — a 64% reduction in penetrations
- Rails and spanners double as wire trays (UL3741)
Suited to TPO, PVC and concrete roofs. Portrait-optimized module orientation.
FX technical specifications
| Tilt angle | 7° (South / E-W); 0° (Flush) |
|---|---|
| Wind rating | Up to 180 mph (≈290 km/h) |
| Snow load | Up to 50 psf (≈2.4 kPa) |
| Roof load | As low as 2.2 psf |
| Height above roof | Minimum 6" (≈150 mm) |
|---|---|
| Module orientation | Portrait optimized |
| Certifications | UL2703, UL3741; ASCE 7-16 & 7-22 |
| Warranty | 25 years |
Wind and snow ratings reflect tested system capability. Final design loads are confirmed per site against the National Building Code of Canada and your local authority.
A mount for every commercial roof.

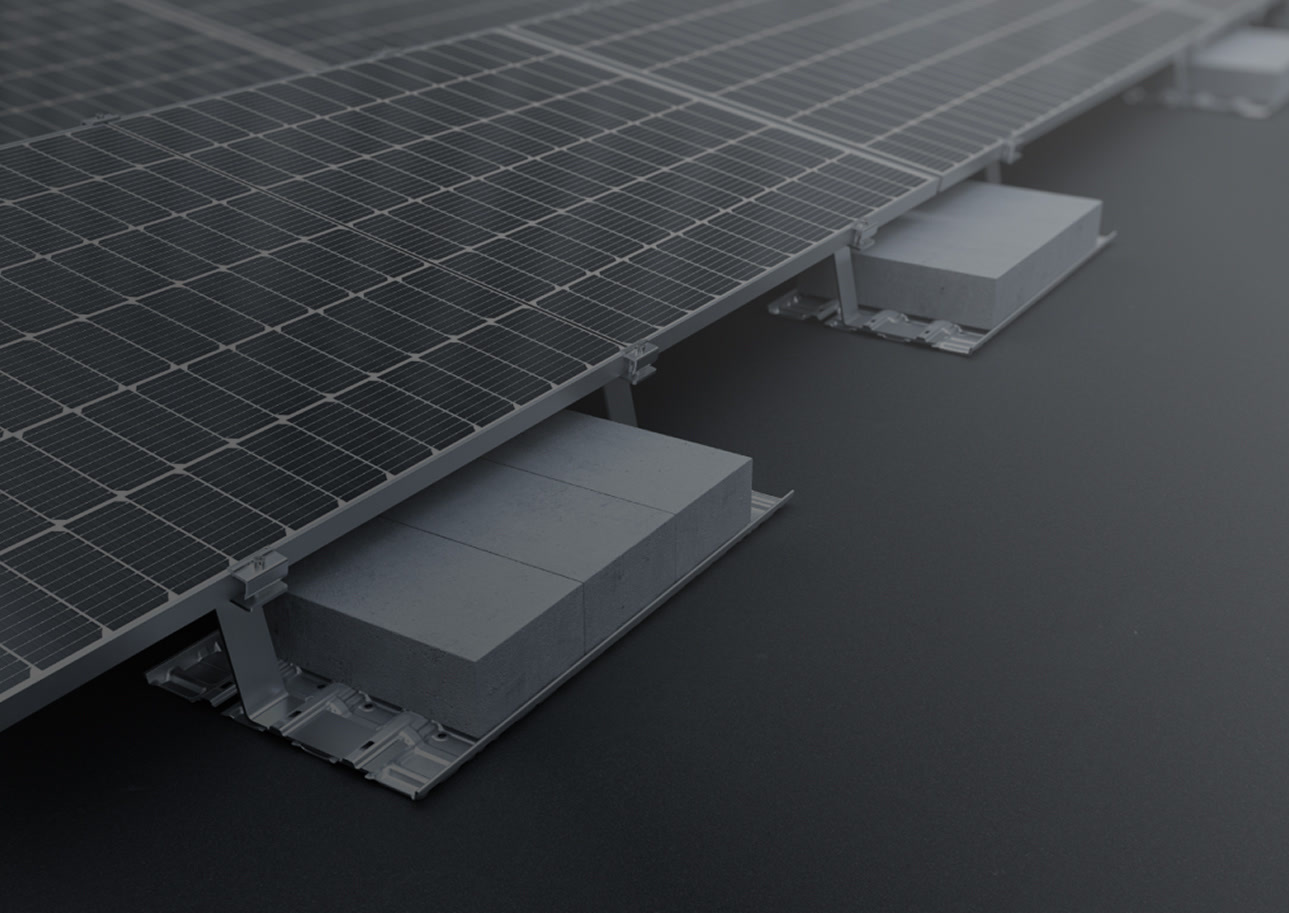

Ballasted attachment
A low-penetration ballasted base for membrane roofs where minimizing anchors matters most, with ballast trays sized to your wind and snow zone.
Penetrating mount
A sealed structural attachment for fully-anchored designs — strong holding power with weather-tight, code-ready flashing.

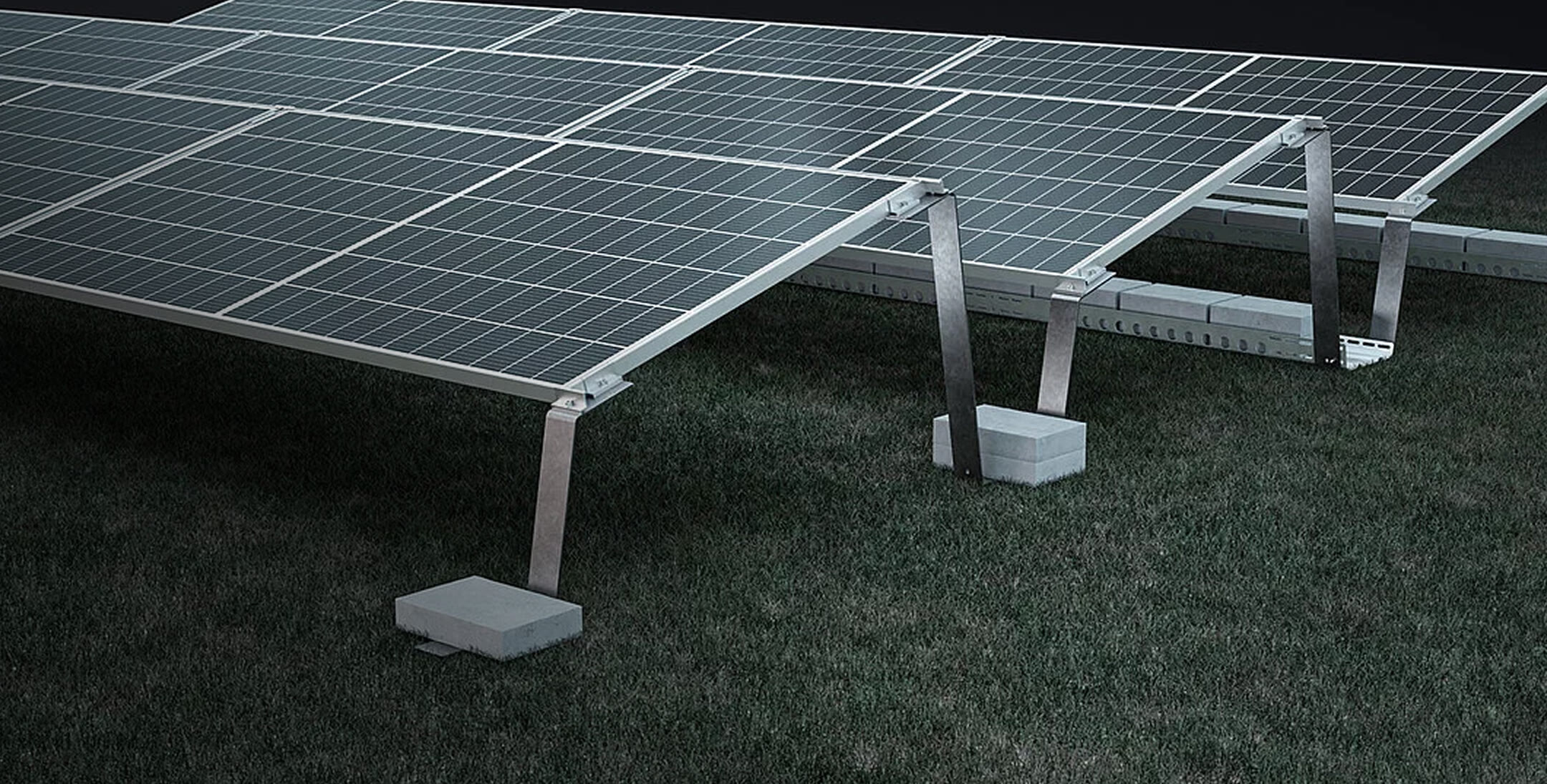

Ground & carport
A versatile foundation interface for ground-mount and carport structures, scaling from small commercial to utility arrays.

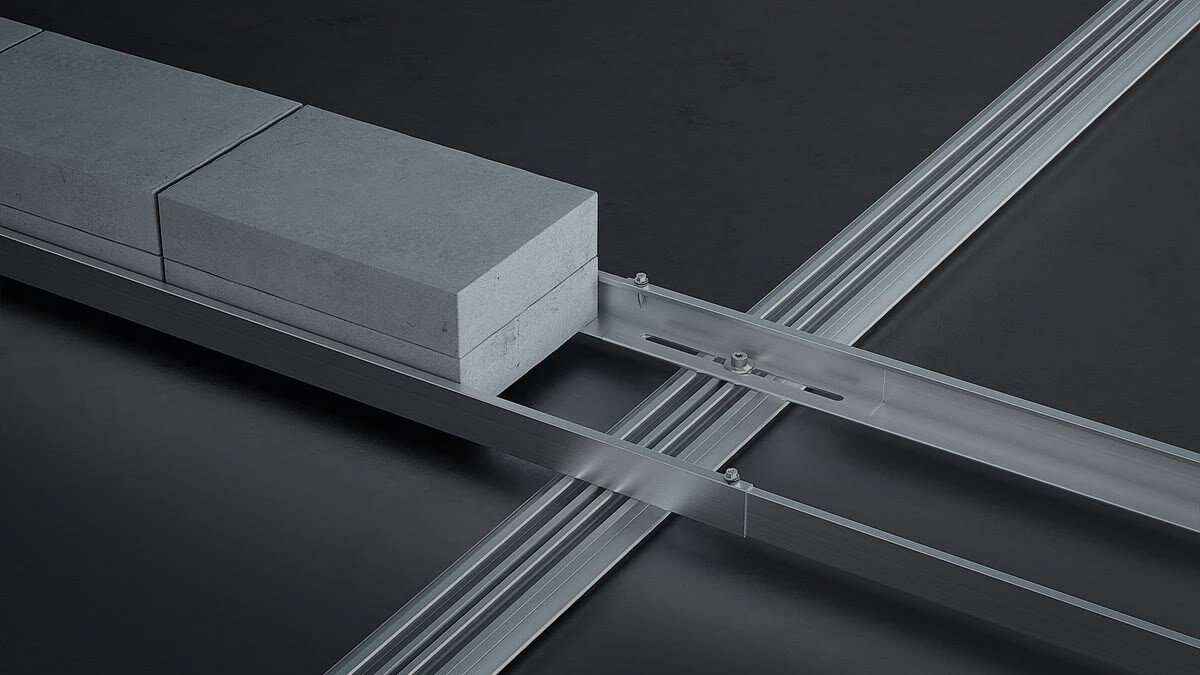

Rail & spanner
The structural rail-and-spanner backbone shared across the commercial line — strong, light, and quick to assemble on the roof.
Have a flat roof to cover?
Send us the project. Our Canadian team will help you spec the lightest, fastest system for your site.
